Yacht-Master 42 movement study

A watch-modelling study focused on the internal movement: plates, bridges, the automatic module and rotor.

Discipline: Mechanical modelling
Tools: Blender
Status: In progress

Yacht-Master 42 : movement study: neutral model presentation.

Discipline: Mechanical modelling
Tools: Blender
Status: In progress

Work in progress

Technical specifications

Movement components in source v0.0.8: date element, back plate, automatic module, barrel bridge, going-train bridge and rotor.

Base mesh: 47,870 triangles
Evaluated geometry: 48,836 triangles
Materials in scope: 5
Anisotropy image: 3,840 × 3,840 pixels

Measured from the selected Blender source at frame 10, using Blender 5.2. Base counts triangulate the editable meshes; evaluated counts include saved viewport modifiers and repeated instances. Presentation staging is excluded.

Solid view

Watch movement assembly. Neutral shading. Subdivision is disabled in these presentation views to expose the underlying construction. — Subdivision disabled for this base-mesh view.03

Topology

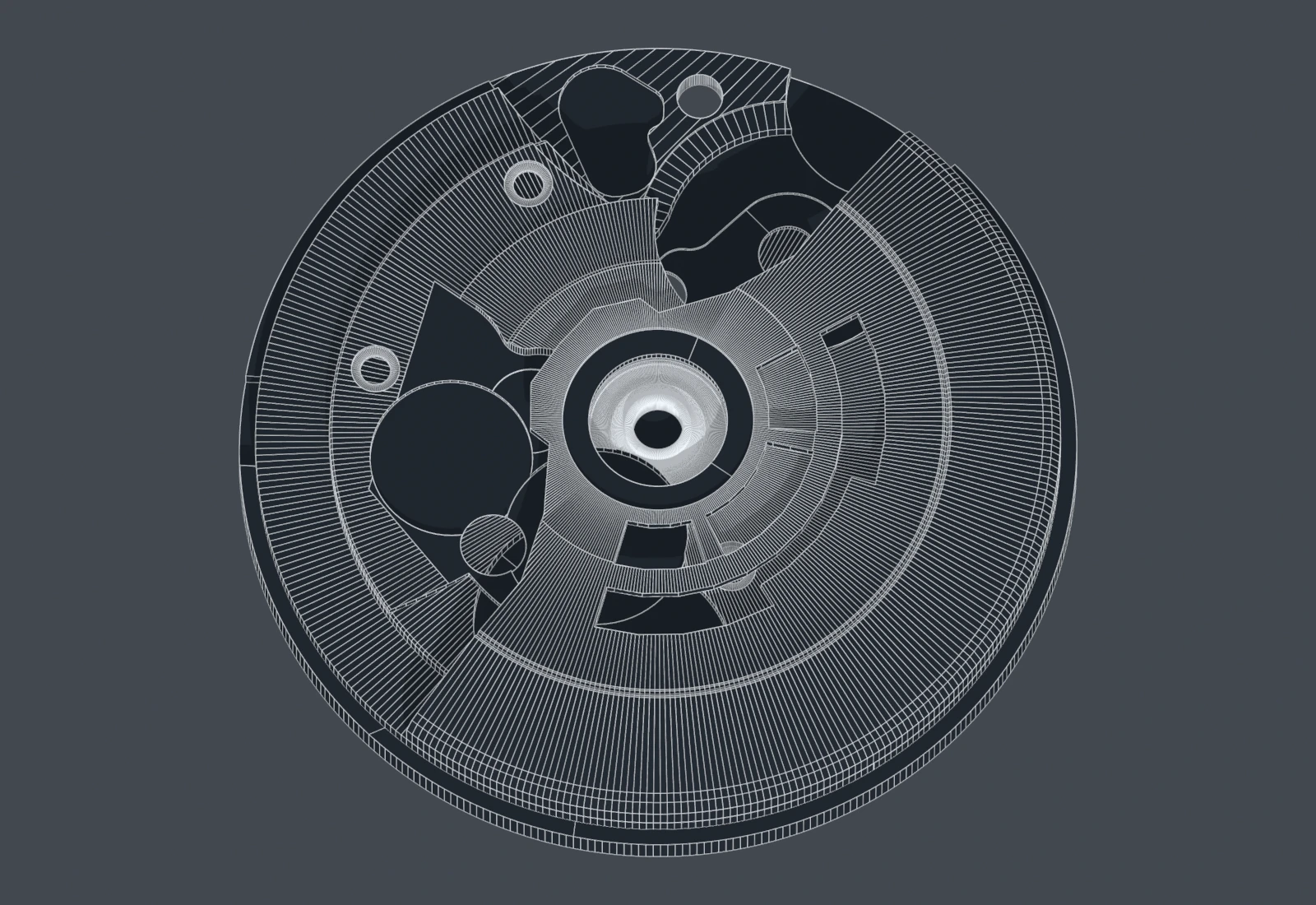

Watch movement assembly. Matching view with polygon edges visible.
